| Brand Name : | ITI-LINK |
| Model Number : | ITI-CT5F-004 |
| Certification : | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |
| Payment Terms : | T/T |
| Supply Ability : | 2000pcs/day |
| Delivery Time : | 15-45Days |
1.The FTP CAT5E Cable is made from copper, which is a highly conductive material that is ideal for transmitting data. Copper is also a durable material that can withstand the rigors of daily use, making it ideal for use in network applications. The cable is also shielded, which helps to reduce interference and noise in the network, ensuring reliable and fast data transmission.
2.The FTP CAT5E Cable is a type of shielded cable, which means that it has an extra layer of protection to help prevent interference and noise. This makes it ideal for use in environments where there may be a lot of electromagnetic interference, such as in industrial settings or areas with high levels of electrical noise.
3.This FTP CAT5E Cable is available in a length of 1000ft, making it ideal for use in large network installations. The length of the cable makes it easy to connect devices that are located far apart, without the need for additional connectors or extenders.
The FTP CAT5E Cable is designed to operate at a frequency of 100MHz, which means that it can support fast data transmission speeds. This makes it ideal for use in applications that require high-speed data transmission, such as video streaming, online gaming, and file sharing.
4.The conductor size of the FTP CAT5E Cable is 24 AWG, which means that it is a thick and durable cable that can withstand the rigors of daily use. The cable is also flexible, which makes it easy to install in tight spaces or around corners.
5.Overall, the FTP CAT5E Cable is a reliable and high-quality cable that is designed for network applications. Whether you need to connect devices in a small office or a large industrial setting, this cable is the ideal choice for your needs. So if you're looking for a reliable and high-quality FTP CAT5E Patch Cord, FTP CAT5E Network Cable, or FTP CAT5E Shielded Cable, look no further than this product.
| Attribute | Value |
|---|---|

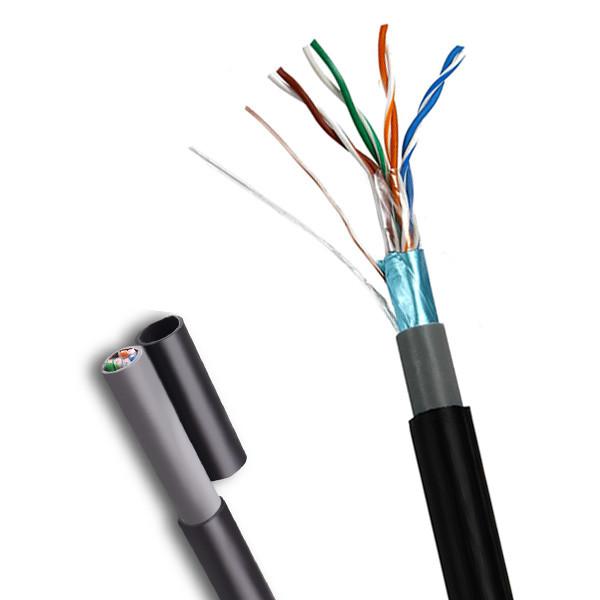

| Product Name | CAT5E FTP Outdoor PE+PVC 0.47mm Solid Black Network Cable Pass Fluke 1000FT |
| Cable Type | FTP CAT5E Shielded OUTDOOR Cable |
| Frequency | 100MHz |
| Length | 1000ft |
| Color | BLACK |
| Jacket Material | PE+PVC |
| Conductor Material | Copper |
| Conductor Size | 24 AWG |
| Certifications | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |
Product Description: CAT5E FTP Outdoor PE+PVC 0.47mm Solid Black Network Cable Pass Fluke 1000FT | ||||||
| Rev.: A | ECN Description: | |||||
| Construction Item Description | Electrical Property | |||||
Conductor | Material | Bare Solid Copper(elongation: 19 ~ 24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m | ||
| OD | 24 AWG | Resistance unbalance within a pair | ≤ 2% | |||
Insulation | Material | HDPE 8303 | Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m | ||
| OD | 0.88 ± 0.05 mm | Mutual capacitance | 5600 pF / 100m MAX | |||
| Average THK | 0.21 mm | Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |||
Color | 1p: white + 2 blue stripes & blue | Characteristic impedance at 100MHz | 100 ± 15 Ω | |||
2p: white + 2 orange stripes & orange | Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | ||||
| 3p: white + 2 green stripes & green | Mechanical Property | |||||
| 4p: white + 2 brown stripes & brown | insulation | elongation before aging | ≥ 300% | |||
Pair Twist | Lay & Direction | 1p: S=20.0 mm (28%) | tensile strength before aging | ≥16 MPa | ||
| 2p: S=17.5 mm (24%)) | elongation after aging | NA | ||||
| 3p: S=22.0 mm (32%) | tensile strength after aging | NA | ||||
| 4p: S=15.5 mm (21%) | jacket | elongation before aging | ≥350% | |||
| OD | / | tensile strength before aging | ≥9.7MPa | |||
Inner Assemble | Lay | S=90 ± 5 mm | elongation after aging | ≥263% | ||
| Direction | according to the drawing | tensile strength after aging | ≥7.3MPa | |||
| Filler | / | Packing | ||||
| OD | / | Inner Box | NA | |||
| Filler | Material | Ripcord | Master Carton | NA | ||
| Construction | 250D*3 | |||||
Outside Shield | Shield | Shield | ||||
| Construction | / | |||||
| Material | Polyester/Aluminium (PET/ALU) | |||||
| Coverage | ≥ 115% | |||||
Jacket | Material | Inner Jacket: PVC + Outside Jacket: PE | ||||
| Hardness | 30 | |||||
| OD | 4.8 / 6.2 | |||||
| Average THK | 0.45 ~ 0.55 | |||||
Color | Green | |||||
Marking Color | according to the customer's requirements | |||||
| Marking | according to the customer's requirements | |||||
| Electrical Properties | ||
| Conductor Resistance at 20°C | UL 444 & CSA C22.2 No. 214 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% | |
Dielectric Strength Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | |
| Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m | |
| Mutual capacitance | 5600pF / 100m MAX | |
| Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |
| Characteristic impedance at 100MHz | 100 ± 15 Ω | |
| Spark Test | 2000 ± 250VOC | |
| Transmission Properties | |||||||||
| CAT5e F/UTP OUTDOOR CABLE | |||||||||
No. | Frequency | Attenuation (Max) | Propagation Delay (MAX) | Propagation Delay Skew (MAX) | Return Loss (Min) | NEXT (Min) | PS NEXT (Min) | EL-FEXT (Min) | PS EL-FEXT (Min) |
| MHz | dB/100m | ns/100m | ns/100m | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | |
| 1 | 4 | 4.05 | 552 | 45 | 23.01 | 56.27 | 53.27 | 51.96 | 48.96 |
| 2 | 8 | 5.77 | 546.73 | 45 | 24.52 | 51.75 | 48.75 | 45.94 | 42.94 |
| 3 | 10 | 6.47 | 545.38 | 45 | 25 | 50.3 | 47.3 | 44 | 41 |
| 4 | 16 | 8.25 | 543 | 45 | 25 | 47.24 | 44.24 | 39.92 | 36.92 |
| 5 | 20 | 9.27 | 542.05 | 45 | 25 | 45.78 | 42.78 | 37.98 | 34.98 |
| 6 | 25 | 10.42 | 541.2 | 45 | 24.32 | 44.33 | 41.33 | 36.04 | 33.04 |
| 7 | 31.25 | 11.72 | 540.44 | 45 | 23.64 | 42.88 | 39.88 | 34.1 | 31.1 |
| 8 | 50 | 15.07 | 539.09 | 45 | 22.21 | 39.82 | 36.82 | 30.02 | 27.02 |
| 9 | 62.5 | 16.99 | 538.55 | 45 | 21.54 | 38.36 | 35.36 | 28.08 | 25.08 |
| 10 | 100 | 21.98 | 537.6 | 45 | 20.11 | 35.3 | 32.3 | 24 | 21 |
| 11 | |||||||||
| 12 | |||||||||
| 13 | |||||||||
| 14 | |||||||||
| Remarks: ＊ are the reference values | |||||||||
1.Certified by UL, ETL, CSA, RCM, TUV, CPR, CE and RoHS, the ITI-CT5F-004 is a reliable choice for any networking project. Its 0.47 ±0.005mm Conductor Size ensures that the cable is capable of transmitting high-speed data with minimal interference.
2.The ITI-CT5F-004 Twisted Pair FTP Cable is suitable for various applications, including commercial and residential installations. The cable's FTP (Foil Twisted Pair) shielding provides extra protection against electromagnetic interference, making it ideal for outdoor and industrial installations.
4.The ITI-CT5F-004 Twisted Pair FTP Cat5e Outdoor Lan Cable can be used for various networking scenarios, including connecting computers, printers, routers, and other networking devices. It can also be used to connect IP cameras, access points, and other surveillance equipment.
5.Overall, the ITI-CT5F-004 Twisted Pair FTP Cat5e Cable is a reliable and durable option for any networking project. Its certifications, high-quality materials, and FTP shielding make it a top choice for both commercial and residential installations.
Q: What brand is this CAT5E cable?
A: This CAT5E cable is manufactured by ITI-LINK.
Q: What is the model number of this CAT5E cable?
A: The model number of this CAT5E cable is ITI-CT5F-003.
Q: Where is this CAT5E cable manufactured?
A: This CAT5E cable is manufactured in SHENZHEN.
Q: What is the maximum length of this CAT5E cable?
A: The maximum length of this CAT5E cable is 1000Ft.
Q: Is this CAT5E cable suitable for outdoor use?
A: Yes, this CAT5E cable is suitable for outdoor use as it is designed to withstand exposure to the elements.
Q. What about the lead time?
A: Our factory takes 3-5 days to complete the sampling process,
while mass production takes 15-45 days to complete.
Q: How to deal with the faulty?
Our products undergo strict testing upon leaving the factory to
ensure 100% compliance.
If there are any problems during transportation or other reasons
causing product issues, we will also do our best to help customers
solve them.
|
|
