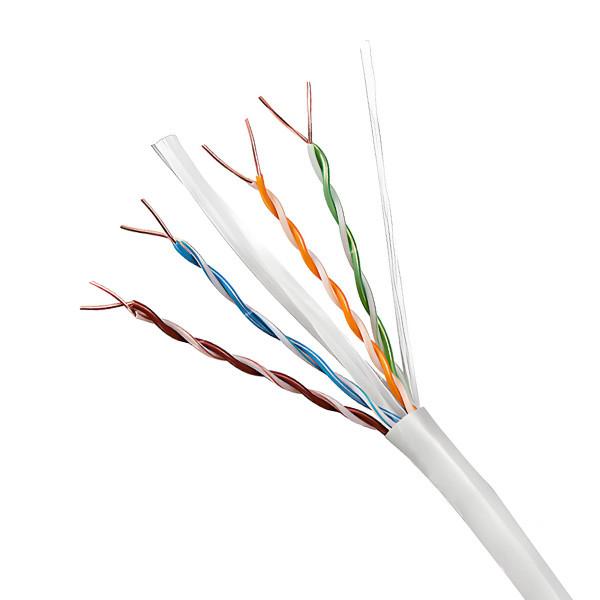

Cat6 UTP Cable 23AWG CMR PVC High Speed Network Lan Cable 1000FT
Quick Detail:
· Bare solid copper conductor
· 250MHz
· Jacket PVC, 60P, -20~75℃
· Rate temperature:60℃ 75℃
· InstallationTemperature: -30℃-+50℃
· CompliestoANSI/TIA-568-B.2&IS0/EC11801
· CE, RoHS, TUV, UL compliant, CPR, ETL, RCM, ISO9001
Description:
1. This Cat6 CMR Cable Provide 250MHz bandwidth within a distance of 90 meters. The typical application rate is 1000Mbps.
2. The Cat6 CMR cables have certain flame retardant properties and are usually used in vertically laid communication trunk line systems, such as vertical wiring channels in high-rise buildings.
3. This Category 6 cable sheath is made of CMR grade flame-retardant material, which will automatically extinguish when burned, producing a small amount of smoke and less toxic gases, suitable for places that require higher fire safety standards.
4. The structure of CMR flame-retardant Category 6 network cables includes insulation outer sheath, anti tear rope, fireproof filling layer, cross insulation filling layer, thermal insulation sleeve, insulation inner sheath, and core. These structures endow the network cable with excellent insulation and fire resistance, extending its service life and ensuring the safety and stability of signal transmission.
Specifications:
| Product Description: Cat 6 UTP Cable 4 X 2 X 23AWG (CMR) | ||||||
| Rev.: A | ECN Description: | |||||
| Construction Item Description | Electrical Property | |||||
Conductor | Material | Bare Solid Copper(elongation: 19-24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m | ||
| OD | 23 AWG | Resistance unbalance within a pair | ≤ 2% | |||
Insulation | Material | HDPE 8303 | Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m | ||
| OD | 1.01 ± 0.01 mm | Mutual capacitance | 5600 pF / 100m MAX | |||
| Average THK | 0.22 mm | Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |||
Color | 1p: white + 2 blue stripes & blue | Characteristic impedance at 100MHz | 100 ±15 Ω | |||
2p: white + 2 orange stripes & orange | Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | ||||
| 3p: white + 2 green stripes & green | Mechanical Property | |||||
| 4p: white + 2 brown stripes & brown | insulation | elongation before aging | ≥ 300% | |||
Pair Twist | Lay & Direction | 1p: S=18.5 mm (26%) | tensile strength before aging | ≥12 MPa | ||
| 2p: S=15.5 mm (21%) | elongation after aging | ≥ 150 % | ||||
| 3p: S=20.5 mm (30%) | tensile strength after aging | ≥10.5 MPa | ||||
| 4p: S=14.0 mm (19%) | jacket | elongation before aging | ≥ 150 % | |||
| OD | / | tensile strength before aging | ≥ 13.5 MPa | |||
Inner Assemble | Lay | S=90±5 mm | elongation after aging | ≥ 125 % | ||
| Direction | according to the drawing | tensile strength after aging | ≥ 12.5 MPa | |||
| Filler | cross member 4.8X4.8X0.5mmT | Packing | ||||
| OD | / | Inner Box | NA | |||
| Filler | Material | Ripcord | Master Carton | NA | ||
| Construction | 300D | |||||
Outside Shield | Shield | / | ||||
| Construction | / | |||||
| Material | / | |||||
| Coverage | / | |||||
Jacket | Material | PVC, Rated 60 or 75℃ | ||||
| Hardness | 81 ±3 | |||||
| OD | 6.0 ± 0.2 | |||||
| Average THK | 0.55~0.60 | |||||
Color | GRAY | |||||
Marking Color | BLACK | |||||
| Marking | according to the customer's requirements | |||||
| Electrical Properties | ||
| Conductor Resistance at 20°C | UL 444 & CSA C22.2 No. 214 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% | |
Dielectric Strength Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | |
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m | |
| Mutual capacitance | 5600pF / 100m MAX | |
| Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |
| Characteristic impedance at 100MHz | 100 ± 15 Ω | |
| Spark Test | 2000 ± 250VOC | |
| Transmission Properties | |||||||||
| CAT 6 UTP CABLE | |||||||||
No. | Frequency | Attenuation (Max) | Propagation Delay (MAX) | Propagation Delay Skew (MAX) | Return Loss (Min) | NEXT (Min) | PS NEXT (Min) | EL-FEXT (Min) | PS EL-FEXT (Min) |
| MHz | dB/100m | ns/100m | ns/100m | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | |
| 1 | 4 | 3.78 | 552 | 45 | 23.01 | 66.27 | 63.27 | 55.96 | 52.96 |
| 2 | 8 | 5.32 | 546.73 | 45 | 24.52 | 61.75 | 58.75 | 49.94 | 46.94 |
| 3 | 10 | 5.95 | 545.38 | 45 | 25 | 60.3 | 57.3 | 48 | 45 |
| 4 | 16 | 7.55 | 543 | 45 | 25 | 57.24 | 54.24 | 43.92 | 40.92 |
| 5 | 20 | 8.47 | 542.05 | 45 | 25 | 55.78 | 52.78 | 41.98 | 38.98 |
| 6 | 25 | 9.51 | 541.2 | 45 | 24.32 | 54.33 | 51.33 | 40.04 | 37.04 |
| 7 | 31.25 | 10.67 | 540.44 | 45 | 23.64 | 52.88 | 49.88 | 38.1 | 35.1 |
| 8 | 50 | 13.66 | 539.09 | 45 | 22.21 | 49.82 | 46.82 | 34.02 | 31.02 |
| 9 | 62.5 | 15.38 | 538.55 | 45 | 21.54 | 48.36 | 45.36 | 32.08 | 29.08 |
| 10 | 100 | 19.8 | 537.6 | 45 | 20.11 | 45.3 | 42.3 | 28 | 25 |
| 11 | 125 | 22.36 | 537.22 | 45 | 19.43 | 43.85 | 40.85 | 26.06 | 23.06 |
| 12 | 200 | 28.98 | 536.55 | 45 | 18 | 40.78 | 37.78 | 21.98 | 18.98 |
| 13 | 250 | 32.85 | 536.28 | 45 | 17.32 | 39.33 | 36.33 | 20.04 | 17.04 |
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
| 17 | |||||||||
| 18 | |||||||||
| Remarks: ＊ are the reference values. | |||||||||
Notices:
Please follow the following steps to check and install the product to ensure it is correct, stable, and meets network connectivity requirements:
1. Open box inspection: After opening the packaging, please carefully inspect the product to confirm that there is no damage, missing parts, or non-compliance with specifications.
2. Wiring specifications: During construction, please strictly
follow the wiring standards, avoid bundling or excessive bending of
network cables, ensure that the lines are unobstructed, and
guarantee optimal performance.
3. RJ45 connector production: When making Ethernet RJ45 connectors,
please follow the T568B or T568A standards to ensure the correct
wiring sequence and avoid unstable network connections or line
disconnections.
4. Network cable usage suggestion: It is recommended to use a
single network cable and ensure that its length does not exceed 100
meters to maintain optimal transmission performance.
By following the above steps, you will be able to install the
product correctly and ensure its stable operation to meet your
network connectivity needs.
