| Brand Name : | ITI-LINK |
| Model Number : | ITI-C6AU-005 |
| Certification : | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |
| Delivery Time : | 15-45 Days |
| Payment Terms : | T/T |
| Supply Ability : | 2000pcs/day |

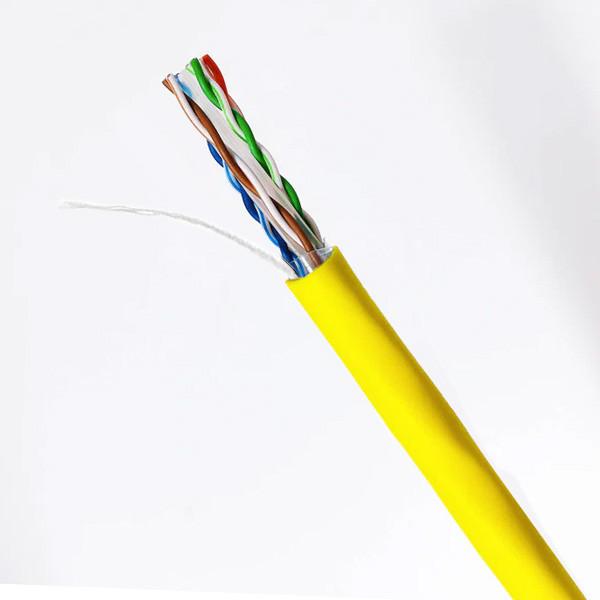

1.The cable's Jacket Material is made of durable PVC, which provides excellent protection against abrasion, moisture, and other environmental factors. The cable is colored yellow, making it easily distinguishable in various installation scenarios. Additionally, this cable complies with the CMP - LP 0.5A standard. The CMP - LP standard indicates its suitability for certain installation environments with specific fire - safety and electrical requirements, and the 0.5A specification defines its current - carrying capacity under normal conditions. This comprehensive set of features ensures that the cable can withstand even the harshest conditions and still provide reliable performance over time.
2.The Category of this cable is CAT6A, which means that it supports
data transfer speeds of up to 10Gbps over distances of up to 305
meters. This extended high - speed capability makes it an ideal
choice for businesses that require fast and reliable connectivity
for their day - to - day operations over larger areas within a
network.
3.The frequency of this cable is 500 MHz, which means that it can
handle high - bandwidth applications with ease. This makes it
perfect for businesses that require fast and reliable data transfer
for applications such as video streaming, online gaming, and large
file transfers, enabling seamless operation of these data -
intensive tasks.
4.The Conductor Material used in this cable is Copper, which is
renowned for its excellent conductivity and durability. This
ensures that the cable provides a stable and reliable connection
over time, even with heavy use. The Conductor Size of this cable is
23 AWG, which is the standard size for Cat6 Lan Cables, further
contributing to its reliable performance within the network
environment.
5.In summary, the Cat6a UTP Cable is a high - quality Ethernet
cable that provides unparalleled performance and reliability. Its
yellow - colored, durable PVC jacket, high - speed capability,
compliance with CMP - LP 0.5A standard, and excellent conductivity
make it an ideal choice for businesses that require fast and
reliable connectivity for their day - to - day operations. So, if
you're looking for a reliable and high - performance Cat6 Ethernet
Cable for your business, this cable is definitely worth
considering.
| Conductor Size | 23 AWG |
| Category | CAT6A |
| Conductor Material | Copper |
| Jacket Color | Yellow |
| Jacket Material | PVC |
| Frequency | 500MHz |
| Length | 1000FT |
| Cable Type | UTP |
Product Description: CAT6A UTP 23AWG 500MHz PVC Cable 305 meters CMP-LP 0.5A For Network Transfer | ||||||
| Rev.: A | ECN Description: | |||||
| Construction Item Description | Electrical Property | |||||
Conductor | Material | Bare Solid Copper(elongation: 19-24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m | ||
| OD | 23 AWG | Resistance unbalance within a pair | ≤ 5% | |||
Insulation | Material | FEP DAIKIN NP-101 E79842 | Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m | ||
| OD | 1.01 ± 0.01 mm | Mutual capacitance | 5600 pF / 100m MAX | |||
| Average THK | 0.22 mm | Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |||
Color | 1p: white + 2 blue stripes & blue | Characteristic impedance at 100MHz | 100 ±15 Ω | |||
2p: white + 2 orange stripes & orange | Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | ||||
| 3p: white + 2 green stripes & green | Mechanical Property | |||||
| 4p: white + 2 brown stripes & brown | insulation | elongation before aging | ≥ 250% | |||
Pair Twist | Lay & Direction | 1p: S=18.5 mm (26%) | tensile strength before aging | ≥20 MPa | ||
| 2p: S=15.5 mm (21%) | elongation after aging | ≥ 200 % | ||||
| 3p: S=20.5 mm (30%) | tensile strength after aging | ≥16 MPa | ||||
| 4p: S=14.0 mm (19%) | jacket | elongation before aging | ≥ 150 % | |||
| OD | / | tensile strength before aging | ≥ 13.5 MPa | |||
Inner Assemble | Lay | S=90±5 mm | elongation after aging | ≥ 125 % | ||
| Direction | according to the drawing | tensile strength after aging | ≥ 12.5 MPa | |||
| Filler | cross member 5.0X5.0X0.5mmT | Packing | ||||
| OD | / | Inner Box | NA | |||
| Filler | Material | Ripcord | Master Carton | NA | ||
| Construction | 300D | |||||
Outside Shield | Shield | / | ||||
| Construction | / | |||||
| Material | / | |||||
| Coverage | / | |||||
Jacket | Material | PVC, MSC 1080 NAT E107947 | ||||
| Hardness | 81 ±3 | |||||
| OD | 6.0 ± 0.2 | |||||
| Average THK | 0.55~0.60 | |||||
Color | Yellow | |||||
Marking Color | Black | |||||
| Marking | according to the customer's requirements | |||||
| Electrical Properties | ||
| Conductor Resistance at 20°C | NF EN 50289-1-2 / IEC 60189-1 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | NF EN 50289-1-2/ IEC 60708 | ≤ 5% |
Dielectric Strength Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | NF EN 50289-1-3 / IEC 61196-1-105 | No breakdown |
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | NF EN 50289-1-4 / IEC 60885-1 | >1500 MΩ / 100m |
| Mutual capacitance | NF EN 50289-1-5 /IEC 60189-1 | 5600pF / 100m MAX |
| Capacitance unbalance pair to ground at 800Hz or 1 kHz | NF EN 50289-1-5 / IEC 60189-1 | ≤ 160 pF / 100m |
| Characteristic impedance at 100MHz | NF EN 50289-1-11/ IEC 61156-1 | 100 ± 15 Ω |
| Spark Test | UL444 | 2000 ± 250VOC |
| Transmission Properties | |||||||||
| CAT6A U/UTP CMP Cable | |||||||||
No. | Frequency | Attenuation (Max) | Propagation Delay (Max) | Propagation Delay Skew (Max) | Return Loss (Min) | NEXT (Min) | PS NEXT (Min) | EL-FEXT (Min) | PS EL-FEXT (Min) |
| MHz | dB/100m | ns/100m | ns/100m | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | |
| 1 | 4 | 3.8 | 552 | 45 | 23.01 | 66.27 | 63.27 | 55.96 | 52.96 |
| 2 | 8 | 5.31 | 546.73 | 45 | 24.52 | 61.75 | 58.75 | 49.94 | 46.94 |
| 3 | 10 | 5.93 | 545.38 | 45 | 25 | 60.3 | 57.3 | 48 | 45 |
| 4 | 16 | 7.49 | 543 | 45 | 25 | 57.24 | 54.24 | 43.92 | 40.92 |
| 5 | 20 | 8.38 | 542.05 | 45 | 25 | 55.78 | 52.78 | 41.98 | 38.98 |
| 6 | 25 | 9.38 | 541.2 | 45 | 24.32 | 54.33 | 51.33 | 40.04 | 37.04 |
| 7 | 31.25 | 10.5 | 540.44 | 45 | 23.64 | 52.88 | 49.88 | 38.1 | 35.1 |
| 8 | 50 | 13.36 | 539.09 | 45 | 22.21 | 49.82 | 46.82 | 34.02 | 31.02 |
| 9 | 62.5 | 14.99 | 538.55 | 45 | 21.54 | 48.36 | 45.36 | 32.08 | 29.08 |
| 10 | 100 | 19.13 | 537.6 | 45 | 20.11 | 45.3 | 42.3 | 28 | 25 |
| 11 | 125 | 21.51 | 537.22 | 45 | 19.43 | 43.85 | 40.85 | 26.06 | 23.06 |
| 12 | 200 | 27.58 | 536.55 | 45 | 18 | 40.78 | 37.78 | 21.98 | 18.98 |
| 13 | 250 | 31.07 | 536.28 | 45 | 17.32 | 39.33 | 36.33 | 20.04 | 17.04 |
| 14 | 300 | 34.27 | 536.08 | 45 | 17.3 | 38.14 | 35.14 | 18.46 | 15.46 |
| 15 | 350 | 37.25 | 535.92 | 45 | 17.3 | 37.14 | 34.14 | 17.12 | 14.12 |
| 16 | 400 | 40.05 | 535.8 | 45 | 17.3 | 36.27 | 33.27 | 15.96 | 12.96 |
| 17 | 450 | 42.71 | 535.7 | 45 | 17.3 | 35.5 | 32.5 | 14.94 | 11.94 |
| 18 | 500 | 45.26 | 535.61 | 45 | 17.3 | 34.82 | 31.82 | 14.02 | 11.02 |
1.The ITI - C6AU - 005, a CAT6A UTP Cable with 23AWG, 500MHz, 305 - meter - long PVC Cable with CMP - LP 0.5A, and colored yellow, is perfect for use in a variety of different scenarios.
2.In large office buildings where there are numerous workstations
and various devices that need to be connected to the internet, this
cable shines. Its yellow color makes it easy to identify during
installation and maintenance among the complex cable systems in an
office environment. The CMP - LP 0.5A feature is especially
valuable as it complies with specific safety and electrical
requirements in office settings, reducing potential risks. With its
high - bandwidth capabilities of up to 500MHz and the ability to
support data transfer over a length of 305 meters, this cable can
effortlessly handle the demands of a busy office environment. It
ensures that all employees can stay connected and productive
throughout the day, whether they are handling large - scale data
processing, video conferencing, or other business - related online
activities.
3.For home networks, this cable is also an excellent choice. The
yellow cable can add a touch of uniqueness to the home network
setup. Users can enjoy seamless experiences such as streaming high
- definition video, playing online games, and browsing the web with
ease. The durable PVC jacket protects the cable from daily wear and
tear in a home environment, while the CMP - LP 0.5A specification
provides an extra layer of safety.
4.Another key application for the ITI - C6AU - 001 is in data
centers and server rooms. In these critical environments, the
yellow color of the cable helps in quick identification during
maintenance and upgrades. The CMP - LP 0.5A standard makes it
suitable for the specific electrical and fire - safety requirements
of data centers. With its copper conductor material providing
excellent conductivity and advanced UTP design protecting against
interference, this cable is the perfect choice for these demanding
applications where reliable, high - speed connectivity is crucial
to ensure that data can be transferred quickly and efficiently over
long distances within the data center.
5.Overall, the ITI - C6AU - 001 is a versatile and reliable CAT6A
Ethernet Cable that can be used in a wide range of different
scenarios. Whether you are looking to connect your home devices to
the internet, or you need to maintain high - speed connectivity in
a busy office or data center, this cable is the perfect choice. So
if you are looking for a high - quality, dependable CAT6A Lan Cable
with unique features like the yellow color and CMP - LP 0.5A
specification, be sure to check out the ITI - LINK ITI - C6AU -
005.
Q: What is the brand name of this product?
A: The brand name of this product is ITI-LINK.
Q: What is the model number of this product?
A: The model number of this product is ITI-C6AU-005.
Q: Where is this product manufactured?
A: This product is manufactured in SHENZHEN.
Q: What type of cable is this?
A: This is a UTP CAT6A cable.
Q: What is the maximum bandwidth of this cable?
A: The maximum bandwidth of this cable is 10Gbps.
|
|
