| Brand Name : | ITI-LINK |
| Model Number : | ITI-CT6SF-002 |
| Certification : | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |
| Delivery Time : | 15-45 Days |
| Payment Terms : | T/T |
| Supply Ability : | 2000pcs/day |

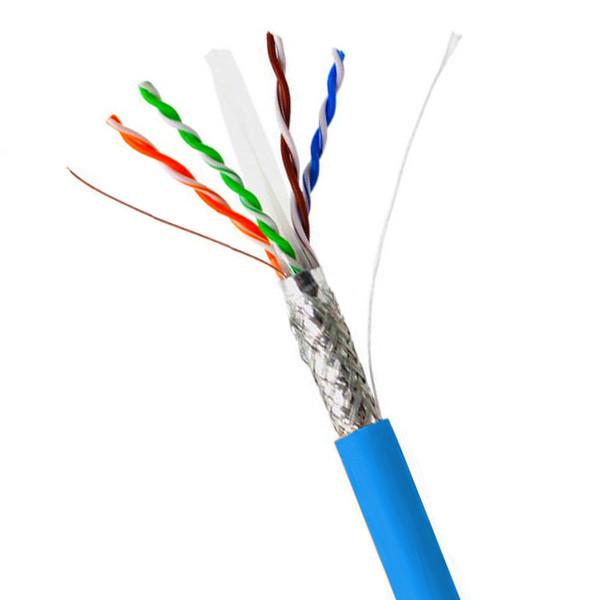

1.Our Cat6 SFTP 23AWG PVC Network Cable With Blue Jacket High Speed is 305 meters long, designed to meet the most stringent performance standards. It guarantees rapid and dependable data transfer, enabling you to enjoy seamless connectivity.
2.The SFTP shielding incorporated in these cables offers
outstanding protection against electromagnetic interference. This
feature makes them particularly suitable for environments with high
- level noise or interference. Moreover, with an extended maximum
transmission distance of 305 meters, you can effortlessly connect
devices over significant distances without sacrificing speed or
signal quality.
3.These Cat6 SFTP cables support an impressive maximum data rate of
10Gbps. This makes them an ideal choice for high - bandwidth
applications such as 4K or even 8K video streaming, high -
intensity gaming, and large - scale data centers. They are also
capable of handling a maximum frequency of 250MHz, ensuring that
your network performs at its peak potential. Whether you are
managing a small office network or a vast data center, our Cat6
SFTP 23AWG PVC Network Cable With Blue Jacket High Speed will
ensure your network operates smoothly and efficiently.
4.The high - quality materials used in the manufacturing of our
Cable contribute to its long - lasting durability. The blue jacket
not only gives the cable an attractive appearance but also provides
additional protection against wear and tear, as well as
environmental factors. The 23AWG construction ensures optimal
conductivity and signal integrity. The PVC material is flexible yet
sturdy, making the cable easy to handle during installation.
5.These cables are designed with a user - friendly, plug - and -
play design, facilitating quick and easy installation. You can get
your network up and running in a short time. So, if you're
searching for a reliable and high - performance Cat 6 Network
Cable, our Cat6 SFTP 23AWG PVC Network Cable With Blue Jacket High
Speed is the perfect solution for you.
| Cable Type | CAT6 SFTP Cable |
| Maximum Frequency | 250MHz |
| Shielding Type | SFTP |
| Maximum Data Rate | 10Gbps |
| Conductor Material | Copper |
| Jacket Material | PVC |
| Conductor Size | 23AWG |
Product Description: Cat6 SFTP 23AWG High Speed Network Cable With Blue PVC Jacket 1000ft | ||||||
| Rev.: A | ECN Description: | |||||
| Construction Item Description | Electrical Property | |||||
Conductor | Material | Bare Solid Copper(elongation: 19-24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m | ||
| OD | 23 AWG | Resistance unbalance within a pair | ≤ 2% | |||
Insulation | Material | HDPE | Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m | ||
| OD | 1.14 ±0.05 mm | Mutual capacitance | 5600 pF / 100m MAX | |||
| Average THK | 0.24 mm | Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |||
Color | 1p: white + 2 blue stripes & blue | Characteristic impedance at 100MHz | 100 ± 15 Ω | |||
| 2p: white + 2 orange stripes & orange | Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | ||||
| 3p: white + 2 green stripes & green | Mechanical Property | |||||
| 4p: white + 2 brown stripes & brown | insulation | elongation before aging | ≥ 300% | |||
Pair Twist | Lay & Direction | 1p: S=19.0 mm (27%) | tensile strength before aging | ≥12 MPa | ||
| 2p: S=23.5 mm (35%) | elongation after aging | ≥ 150 % | ||||
| 3p: S=21.5 mm (31%) | tensile strength after aging | ≥10.5 MPa | ||||
| 4p: S=27.0 mm (40%) | jacket | elongation before aging | ≥ 150 % | |||
| OD | / | tensile strength before aging | ≥ 13.5 MPa | |||
Inner Assemble | Lay | S=90 ± 5 mm | elongation after aging | ≥ 125 % | ||
| Direction | according to the drawing | tensile strength after aging | ≥ 12.5 MPa | |||
| Filler | cross member 5.0X5.0X0.5mmT | Packing | ||||
| OD | / | NA | NA | |||
| Filler | Ripcord | 300D | ||||
| Drain Wire | Tinned Copper | |||||
Shield | Shield | Shield | ||||
| Construction | / | |||||
| Material | Polyester/Aluminium (PET/ALU) | |||||
| Coverage | ≥ 115% | |||||
Jacket | Material | PVC, 50P, -20~75℃ | ||||
| Hardness | 81± 3 | |||||
| OD | 7.2 ± 0.2 | |||||
| Average THK | 0.55 ~ 0.60 | |||||
Color | Blue | |||||
| Marking Color | according to the customer's requirements | |||||
| Marking | according to the customer's requirements | |||||
| Electrical Properties | ||
| Conductor Resistance at 20°C | NF EN 50289-1-2 / IEC 60189-1 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | NF EN 50289-1-2/ IEC 60708 | ≤ 2% |
Dielectric Strength Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | NF EN 50289-1-3 / IEC 61196-1-105 | No breakdown |
| Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | NF EN 50289-1-4 / IEC 60885-1 | >1500 MΩ / 100m |
| Mutual capacitance | NF EN 50289-1-5 /IEC 60189-1 | 5600pF / 100m MAX |
| Capacitance unbalance pair to ground at 800Hz or 1 kHz | NF EN 50289-1-5 / IEC 60189-1 | ≤ 160 pF / 100m |
| Characteristic impedance at 100MHz | NF EN 50289-1-11/ IEC 61156-1 | 100 ± 15 Ω |
| Spark Test | UL444 | 2000 ± 250VOC |
| Transmission Properties | |||||||||
| CAT 6 ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013 | |||||||||
No. | Frequency | Attenuation (Max) | Propagation Delay (MAX) | Propagation Delay Skew (MAX) | Return Loss (Min) | NEXT (Min) | PS NEXT (Min) | EL-FEXT (Min) | PS EL-FEXT (Min) |
| MHz | dB/100m | ns/100m | ns/100m | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | |
| 1 | 4 | 3.78 | 552 | 45 | 23.01 | 66.27 | 63.27 | 55.96 | 52.96 |
| 2 | 8 | 5.32 | 546.73 | 45 | 24.52 | 61.75 | 58.75 | 49.94 | 46.94 |
| 3 | 10 | 5.95 | 545.38 | 45 | 25 | 60.3 | 57.3 | 48 | 45 |
| 4 | 16 | 7.55 | 543 | 45 | 25 | 57.24 | 54.24 | 43.92 | 40.92 |
| 5 | 20 | 8.47 | 542.05 | 45 | 25 | 55.78 | 52.78 | 41.98 | 38.98 |
| 6 | 25 | 9.51 | 541.2 | 45 | 24.32 | 54.33 | 51.33 | 40.04 | 37.04 |
| 7 | 31.25 | 10.67 | 540.44 | 45 | 23.64 | 52.88 | 49.88 | 38.1 | 35.1 |
| 8 | 50 | 13.66 | 539.09 | 45 | 22.21 | 49.82 | 46.82 | 34.02 | 31.02 |
| 9 | 62.5 | 15.38 | 538.55 | 45 | 21.54 | 48.36 | 45.36 | 32.08 | 29.08 |
| 10 | 100 | 19.8 | 537.6 | 45 | 20.11 | 45.3 | 42.3 | 28 | 25 |
| 11 | 125 | 22.36 | 537.22 | 45 | 19.43 | 43.85 | 40.85 | 26.06 | 23.06 |
| 12 | 200 | 28.98 | 536.55 | 45 | 18 | 40.78 | 37.78 | 21.98 | 18.98 |
| 13 | 250 | 32.85 | 536.28 | 45 | 17.32 | 39.33 | 36.33 | 20.04 | 17.04 |
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
| 17 | |||||||||
| 18 | |||||||||
| Remarks: ＊ are the reference values. | |||||||||

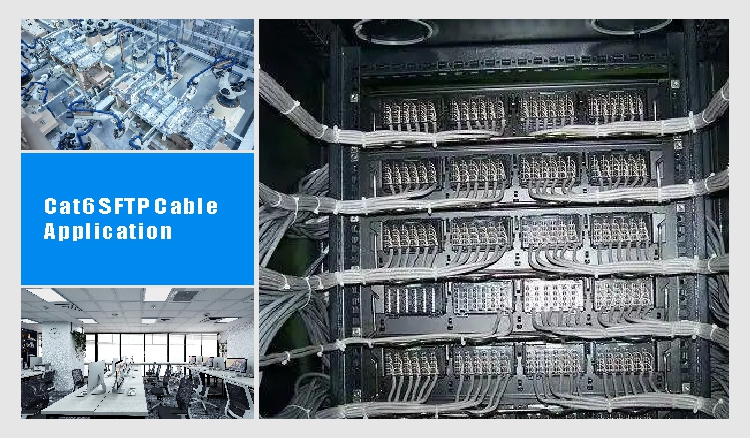

The Cat6 SFTP 23AWG PVC Network Cable with Blue Jacket High Speed and a length of 305 meters is suitable for a diverse range of occasions and scenarios, such as:
1.Office networks: This cable is perfect for linking computers, printers, and other
network devices within an office environment. Thanks to its high -
speed data transfer capabilities, it can effortlessly handle large
data files and multimedia content, facilitating efficient office
operations.
2.Home networks: It's an excellent option for home networks, especially in
households with numerous devices in need of internet access. Ideal
for streaming high - definition movies, engaging in online gaming,
and smooth web browsing without any lag or buffering issues,
providing a seamless online experience for the whole family.
3.Data centers: Widely utilized in data centers to connect servers, storage
devices, and other networking equipment. Its high bandwidth and low
latency guarantee rapid and reliable data transfer among different
components of the data center, ensuring the smooth running of data
- intensive operations.
4.Security systems: Commonly used to connect security cameras and other surveillance
equipment. The cable offers high - quality video and audio
transmission, enhancing the effectiveness of monitoring and
safeguarding homes, offices, and public spaces.
Audio/Video applications: Suitable for audio and video applications
including streaming media players, gaming consoles, and smart TVs.
It ensures high - quality audio and video transmission with minimal
interference or signal loss, delivering an immersive entertainment
experience.
5.Industrial environments: Engineered to endure harsh industrial conditions with high levels
of electromagnetic interference (EMI) and significant temperature
variations. Frequently employed in manufacturing plants, oil
refineries, and other industrial settings, maintaining stable
network connections under tough circumstances.
6.Outdoor networking: The blue - jacketed cable is not only visually distinct but also
resistant to environmental factors. It can be used for outdoor
network setups such as connecting buildings in a campus - style
office complex, or providing network access to outdoor facilities
in industrial areas. The 305 - meter length offers flexibility in
covering larger distances without sacrificing performance.
In summary, the Cat6 SFTP 23AWG PVC Network Cable with Blue Jacket
High Speed and 305 - meter length is a highly versatile and
reliable networking cable capable of supporting a vast array of
applications and scenarios. Whether you're in an office, at home,
in a data center, or an industrial environment, or need outdoor
network connections, this cable provides fast and efficient data
transfer with minimal signal loss.
Q: What is the brand name of this SFTP CAT6 cable?
A: The brand name of this SFTP CAT6 cable is ITI-LINK.
Q: What is the model number of this SFTP CAT6 cable?
A: The model number of this SFTP CAT6 cable is ITI-CT6SF-002.
Q: Where is this SFTP CAT6 cable manufactured?
A: This SFTP CAT6 cable is manufactured in Shenzhen, China.
Q: Does this SFTP CAT6 cable support gigabit Ethernet?
A: Yes, this SFTP CAT6 cable supports gigabit Ethernet and is backwards compatible with lower Ethernet speeds.
Q: Is this SFTP CAT6 cable suitable for outdoor use?
A: No, this SFTP CAT6 cable is not suitable for outdoor use as it is not designed to withstand exposure to weather elements.
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea, which usually takes about 7 days to
arrive.
Q. How to proceed an order for network cable?
A: 1. Firstly let us know your requirements or application.
2. Secondly We quote according to your requirements or our
suggestions.
3. Thirdly customer confirms the samples and places deposit for
formal order.
4. Fourthly We arrange the production.
|
|
