| Brand Name : | ITI-LINK |
| Model Number : | ITI-CT6SF-001 |
| Certification : | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |
| Delivery Time : | 15-45 Days |
| Payment Terms : | T/T |
| Supply Ability : | 2000pcs/day |
1.Our Cat6 SFTP 23AWG Solid Outdoor Black PVC + PE High Speed Ethernet Cable, with a length of 1000FT, is an outstanding choice for your networking infrastructure.
2.This cable is crafted with high - quality copper conductors.
These conductors are designed to offer excellent conductivity,
ensuring that your data transmission is efficient. At the same
time, they minimize signal loss to maintain the integrity of the
signal. The copper conductors are twisted in pairs, and then
encapsulated within a foil shield. This foil shield acts as a
powerful barrier against electromagnetic interference (EMI) and
radio frequency interference (RFI). With the SFTP (Shielded Foiled
Twisted Pair) design, the cable guarantees superior signal quality.
This makes it particularly suitable for mission - critical
applications where any signal degradation could have significant
consequences.
3.The jacket of our cable is composed of a combination of PVC and
PE materials. The PVC component provides exceptional durability,
allowing the cable to endure the wear and tear of daily use. It
also offers great flexibility, making the cable easy to install and
manage. What's more, the PVC is flame - retardant, enhancing the
safety of the cable during operation. The addition of PE further
improves the cable's performance in outdoor environments. The black
color of the jacket not only gives the cable a sleek and
professional appearance but also provides better protection against
sunlight and other environmental factors. This makes it an ideal
choice for outdoor applications, as it can withstand harsh weather
conditions such as rain, snow, and extreme temperatures.
4.Our Cat6 SFTP cable has a maximum transmission distance of up to
100 meters. This ample range makes it perfect for use in larger
networks, enabling you to cover a significant area without
sacrificing signal quality. It also supports Power over Ethernet
(PoE), which simplifies your network setup by allowing you to power
devices through the same cable that transmits data. Additionally,
it is backward compatible with Cat5 and Cat5e cables. This
compatibility feature means that you can easily integrate this
cable into your existing network infrastructure, whether you are
upgrading or expanding.
5.Whether you are setting up a home network to enjoy seamless
internet connectivity throughout your house or establishing a large
- scale enterprise network that demands high - performance and
reliability, our Cat6 SFTP 23AWG Solid Outdoor Black PVC + PE High
Speed Ethernet Cable is the perfect solution. Its high - quality
construction ensures long - term durability and stability, while
its superior performance guarantees excellent signal transmission.
The combination of these features makes it the ideal choice for
mission - critical applications. And with its compatibility with
older cable types, you can make the transition smoothly and cost -
effectively.
6.Don't compromise on the quality of your network cables. Opt for
our Cat6 SFTP 23AWG Solid Outdoor Black PVC + PE High Speed
Ethernet Cable today and witness the remarkable difference it can
make in your networking experience.
| Cable Type | CAT6 SFTP Cables |
| Shielding Type | SFTP |
| Maximum Frequency | 250MHz |
| Conductor Size | 23AWG |
| Conductor Material | Copper |
| Maximum Data Rate | 1Gbps |
| Jacket Material | PE+PVC |
Product Description: Cat6 SFTP 23AWG Solid Outdoor PVC+PE High Speed Ethernet Cable 1000FT | ||||||
| Rev.: A | ECN Description: | |||||
| Construction Item Description | Electrical Property | |||||
Conductor | Material | Bare Solid Copper(elongation: 19 ~ 24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m | ||
| OD | 23 AWG | Resistance unbalance within a pair | ≤ 2% | |||
Insulation | Material | HDPE 8303 | Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m | ||
| OD | 1.14 ± 0.05 mm | Mutual capacitance | 5600 pF / 100m MAX | |||
| Average THK | 0.24 mm | Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |||
Color | 1p: white + 2 blue stripes & blue | Characteristic impedance at 100MHz | 100 ± 15 Ω | |||
2p: white + 2 orange stripes & orange | Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | ||||
| 3p: white + 2 green stripes & green | Mechanical Property | |||||
| 4p: white + 2 brown stripes & brown | insulation | elongation before aging | ≥ 300% | |||
Pair Twist | Lay & Direction | 1p: S=20.0 mm (28%) | tensile strength before aging | ≥16 MPa | ||
| 2p: S=17.5 mm (24%) | elongation after aging | NA | ||||
| 3p: S=22.0 mm (32%) | tensile strength after aging | NA | ||||
| 4p: S=15.5 mm (21%) | jacket | elongation before aging | ≥350% | |||
| OD | / | tensile strength before aging | ≥9.7MPa | |||
Inner Assemble | Lay | S=90 ± 5 mm | elongation after aging | ≥263% | ||
| Direction | according to the drawing | tensile strength after aging | ≥7.3MPa | |||
| OD | / | Packing | ||||
| Cross Member | 5.0*5.0*0.5mm | Inner Box | NA | |||
| Filler | Material | Ripcord | Master Carton | NA | ||
| Construction | 300D | |||||
Outside Shield | Drain Wire | Tinned Copper | ||||
| Aluminum-magnesium braided wire | 80*0.12mm | |||||
Material | Polyester film/Aluminium Foil (PET/ALU) | |||||
| Coverage | ≥ 115% | |||||
Jacket | Material | Inner Jacket: PVC + Outside Jacket: PE | ||||
| Hardness | 30 | |||||
| OD | 7.2 / 8.2 | |||||
| Average THK | 0.45 ~ 0.55 | |||||
Color | Black | |||||
Marking Color | according to the customer's requirements | |||||
Marking | According to the customer's requirements | |||||
| Electrical Properties | ||
| Conductor Resistance at 20°C | UL 444 & CSA C22.2 No. 214 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% | |
Dielectric Strength Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | |
| Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m | |
| Mutual capacitance | 5600pF / 100m MAX | |
| Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |
| Characteristic impedance at 100MHz | 100 ± 15 Ω | |
| Spark Test | 2000 ± 250VOC | |
| Transmission Properties | |||||||||
| CAT 6 U/UTP | |||||||||
No. | Frequency | Attenuation (Max) | Propagation Delay (MAX) | Propagation Delay Skew (MAX) | Return Loss (Min) | NEXT (Min) | PS NEXT (Min) | EL-FEXT (Min) | PS EL-FEXT (Min) |
| MHz | dB/100m | ns/100m | ns/100m | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | |
| 1 | 4 | 3.78 | 552 | 45 | 23.01 | 66.27 | 63.27 | 55.96 | 52.96 |
| 2 | 8 | 5.32 | 546.73 | 45 | 24.52 | 61.75 | 58.75 | 49.94 | 46.94 |
| 3 | 10 | 5.95 | 545.38 | 45 | 25 | 60.3 | 57.3 | 48 | 45 |
| 4 | 16 | 7.55 | 543 | 45 | 25 | 57.24 | 54.24 | 43.92 | 40.92 |
| 5 | 20 | 8.47 | 542.05 | 45 | 25 | 55.78 | 52.78 | 41.98 | 38.98 |
| 6 | 25 | 9.51 | 541.2 | 45 | 24.32 | 54.33 | 51.33 | 40.04 | 37.04 |
| 7 | 31.25 | 10.67 | 540.44 | 45 | 23.64 | 52.88 | 49.88 | 38.1 | 35.1 |
| 8 | 50 | 13.66 | 539.09 | 45 | 22.21 | 49.82 | 46.82 | 34.02 | 31.02 |
| 9 | 62.5 | 15.38 | 538.55 | 45 | 21.54 | 48.36 | 45.36 | 32.08 | 29.08 |
| 10 | 100 | 19.8 | 537.6 | 45 | 20.11 | 45.3 | 42.3 | 28 | 25 |
| 11 | 125 | 22.36 | 537.22 | 45 | 19.43 | 43.85 | 40.85 | 26.06 | 23.06 |
| 12 | 200 | 28.98 | 536.55 | 45 | 18 | 40.78 | 37.78 | 21.98 | 18.98 |
| 13 | 250 | 32.85 | 536.28 | 45 | 17.32 | 39.33 | 36.33 | 20.04 | 17.04 |
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
| 17 | |||||||||
| 18 | |||||||||
| Remarks: ＊ are the reference values. | |||||||||

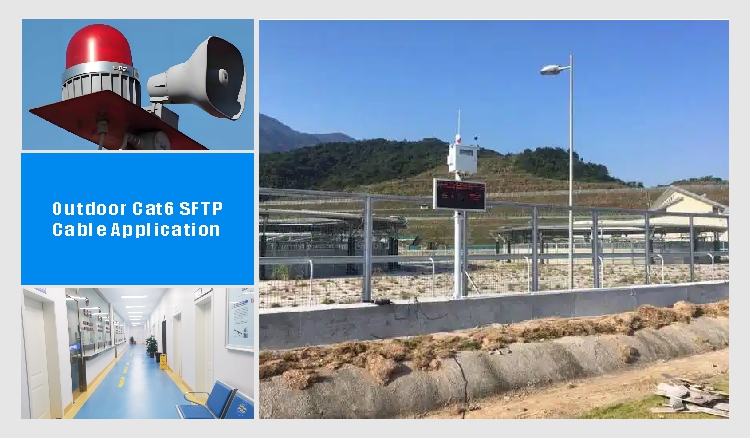

1.With its SFTP shielding, ITI - LINK's Cat6 SFTP 23AWG Solid Outdoor Black PVC + PE High Speed Ethernet Cable, which is 1000FT long, is ideal for use in environments where interference from electrical and radio signals is a concern. Its shielding effectively blocks out such interference, ensuring stable signal transmission even in harsh conditions. It is an outstanding choice for businesses, organizations, and individuals who require a high - speed, reliable, and secure network connection outdoors.
2.ITI - LINK's Cat6 SFTP 23AWG Solid Outdoor Black PVC + PE High
Speed Ethernet Cable is suitable for a vast array of applications.
In large office buildings with extensive outdoor cabling needs,
such as those with campus - style layouts or multiple annexes, this
cable is perfect. The black color and durable construction make it
blend well with the outdoor environment while withstanding the
elements. It's also ideal for data centers that have outdoor
connections to other facilities or backup power sources, as it
provides secure and reliable connectivity crucial for data
transmission.
3.This cable is an excellent option for homes and small businesses
with outdoor network requirements. For example, in a home with a
detached garage, workshop, or backyard office that needs to be
connected to the main network, or a small business with outdoor
surveillance systems, Wi - Fi access points in outdoor areas, or
connections between different buildings on the property. The
cable's outdoor - friendly design ensures that the network
connection remains reliable and secure despite exposure to
sunlight, rain, snow, and temperature variations.
4.Whether you need a Cat6 LAN Cable for your home, business, or
organization, ITI - LINK's Cat6 SFTP 23AWG Solid Outdoor Black PVC
+ PE High Speed Ethernet Cable is an excellent choice. This cable
is engineered to provide maximum performance and reliability under
outdoor conditions. It's an excellent investment for anyone who
needs a reliable and secure network connection outdoors.
Some specific scenarios where ITI - LINK's Cat6 SFTP 23AWG Solid
Outdoor Black PVC + PE High Speed Ethernet Cable can be used
include:
If you need a reliable, high - speed, and secure network connection outdoors, ITI - LINK's Cat6 SFTP 23AWG Solid Outdoor Black PVC + PE High Speed Ethernet Cable is an excellent choice. This cable is designed to provide maximum performance and reliability in outdoor environments, and it is an excellent investment for anyone who needs a high - quality Cat6 SFTP Cable for outdoor use.
Q: What is the brand name of this SFTP CAT6 Cable?
A: The brand name of this SFTP CAT6 Cable is ITI-LINK .
Q: What is the model number of this SFTP CAT6 Cable?
A: The model number of this SFTP CAT6 Cable is ITI-CT6SF-001 .
Q: Where is this SFTP CAT6 Cable manufactured?
A: This SFTP CAT6 Cable is manufactured in Shenzhen .
Q: What is the maximum transmission speed of this SFTP CAT6 Cable?
A: This SFTP CAT6 Cable is capable of transmitting data at speeds of up to 10 Gigabits per second .
Q: Is this SFTP CAT6 Cable suitable for outdoor use?
A: Yes, this SFTP CAT6 Cable is suitable for outdoor use as it is made with materials that can withstand harsh weather conditions.
|
|
