| Brand Name : | ITI-LINK |
| Model Number : | ITI-CT6F-002 |
| Certification : | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |
| Delivery Time : | 15-45 Days |
| Payment Terms : | T/T |
| Supply Ability : | 2000pcs/day |
1.The Cat6 FTP 23AWG 1000ft Extend to 550MHZ Outdoor PE Jacket Network Cables are meticulously engineered to deliver outstanding performance in outdoor environments. These cables are made with a copper conductor material having a diameter of 0.560±0.005mm, which complies with the standard size for most networking cables. The copper conductor not only guarantees reliable and efficient data transmission but also shows remarkable resistance to corrosion. This is of utmost importance for outdoor applications as the cable may be exposed to diverse weather conditions and environmental factors for extended periods.
2.The cable type of these outdoor Cat6 FTP cables is FTP,
signifying Foiled Twisted Pair. This design includes a layer of
foil shielding around the twisted pairs of wires. In outdoor
settings, there are abundant potential sources of electromagnetic
interference like power lines, radio signals, and other electrical
equipment. The foil shielding effectively minimizes electromagnetic
interference and cross - talk, making these cables highly suitable
for outdoor installations where electrical interference is
prevalent.
3.The jacket material of these cables is polyethylene (PE),
carefully selected for its exceptional durability and protection
capabilities in outdoor conditions. In contrast to traditional PVC
jackets, the PE jacket provides superior resistance to abrasion,
moisture, and UV radiation. This enables the cable to endure the
harsh outdoor elements, including rain, snow, sunlight, and
temperature fluctuations.
Moreover, the PE jacket is environmentally friendly, reducing the
impact on the surrounding environment during its long - term
outdoor use.

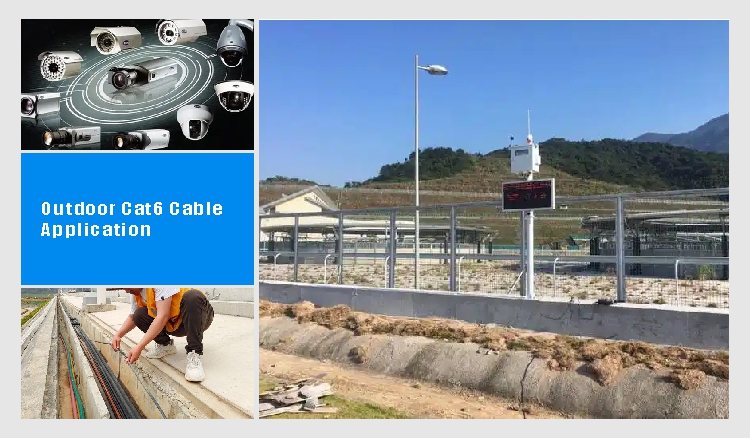

These Cat6 FTP 23AWG 305 - meter Extend to 550MHZ Outdoor PE Jacket
Network Cables are the top choice for networking professionals
handling outdoor networking projects. Their versatility allows them
to be used in a broad range of applications. They can be used to
connect outdoor security cameras, wireless access points, and
outdoor servers, as well as to establish connections between
different outdoor buildings in large - scale commercial or
industrial complexes. They are also perfect for outdoor home
networks, providing stable connections for smart home devices
installed in gardens, patios, or other outdoor areas.
4.In summary, if you are seeking a high - quality networking cable
that adheres to the latest Ethernet standards and is specifically
designed for outdoor use, the Cat6 FTP 23AWG 305 - meter Extend to
550MHZ Outdoor PE Jacket Network Cables are the ideal solution.
Their copper conductor material, foiled twisted - pair design, and
durable PE jacket work together to form a reliable and efficient
cabling solution that can support high - speed data transfer rates
in outdoor environments. Whether you are setting up a small - scale
outdoor home network or a large - scale outdoor office network,
these cables are the perfect choice to meet all your outdoor
networking needs.
| Color | Black |
| Category | Networking Cables |
| Cable Length | 305 Meters |
| Conductor Size | 23 AWG |
| Jacket Material | PE |
| Conductor Material | Copper |
| Cable Type | FTP |
Product Description: Cat6 FTP 23AWG Extend to 550MHZ Outdoor PE Jacket Network Cable 305 meters | ||||||
| Rev.: A | ECN Description: | |||||
| Construction Item Description | Electrical Property | |||||
Conductor | Material | Bare Solid Copper(elongation: 19-24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m | ||
| OD | 23 AWG | Resistance unbalance within a pair | ≤ 5% | |||
Insulation | Material | HDPE 8303 | Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m | ||
| OD | 1.14 ± 0.01 mm | Mutual capacitance | 5600 pF / 100m MAX | |||
| Average THK | 0.24 mm | Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |||
Color | 1p: white + 2 blue stripes & blue | Characteristic impedance at 100MHz | 100 ±15 Ω | |||
2p: white + 2 orange stripes & orange | Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | ||||
| 3p: white + 2 green stripes & green | Mechanical Property | |||||
| 4p: white + 2 brown stripes & brown | insulation | elongation before aging | ≥ 300% | |||
Pair Twist | Lay & Direction | 1p: S=18.5 mm (26%) | tensile strength before aging | ≥12 MPa | ||
| 2p: S=15.5 mm (21%) | elongation after aging | ≥ 150 % | ||||
| 3p: S=20.5 mm (30%) | tensile strength after aging | ≥10.5 MPa | ||||
| 4p: S=14.0 mm (19%) | jacket | elongation before aging | ≥350% | |||
| OD | / | tensile strength before aging | ≥9.7MPa | |||
Inner Assemble | Lay | S=90±5 mm | elongation after aging | ≥263% | ||
| Direction | according to the drawing | tensile strength after aging | ≥7.3MPa | |||
| Filler | cross member 5.0X5.0X0.5mmT | Packing | ||||
| OD | / | Inner Box | NA | |||
| Filler | Material | Ripcord | Master Carton | NA | ||
| Construction | 300D | |||||
Outside Shield | Shield | / | ||||
| Construction | / | |||||
| Material | / | |||||
| Coverage | / | |||||
Jacket | Material | LDPE | ||||
| Hardness | 30 | |||||
| OD | 7.2 ± 0.2 | |||||
| Average THK | 0.50~0.60 | |||||
Color | Black | |||||
Marking Color | white | |||||
| Marking | according to the customer's requirements | |||||
| Electrical Properties | ||
| Conductor Resistance at 20°C | UL 444 & CSA C22.2 No. 214 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% | |
Dielectric Strength Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | |
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m | |
| Mutual capacitance | 5600pF / 100m MAX | |
| Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |
| Characteristic impedance at 100MHz | 100 ± 15 Ω | |
| Spark Test | 2000 ± 250VOC | |
| Transmission Properties | |||||||||
| CAT 6 U/UTP | |||||||||
No. | Frequency | Attenuation (Max) | Propagation Delay (MAX) | Propagation Delay Skew (MAX) | Return Loss (Min) | NEXT (Min) | PS NEXT (Min) | EL-FEXT (Min) | PS EL-FEXT (Min) |
| MHz | dB/100m | ns/100m | ns/100m | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | |
| 1 | 4 | 3.78 | 552 | 45 | 23.01 | 66.27 | 63.27 | 55.96 | 52.96 |
| 2 | 8 | 5.32 | 546.73 | 45 | 24.52 | 61.75 | 58.75 | 49.94 | 46.94 |
| 3 | 10 | 5.95 | 545.38 | 45 | 25 | 60.3 | 57.3 | 48 | 45 |
| 4 | 16 | 7.55 | 543 | 45 | 25 | 57.24 | 54.24 | 43.92 | 40.92 |
| 5 | 20 | 8.47 | 542.05 | 45 | 25 | 55.78 | 52.78 | 41.98 | 38.98 |
| 6 | 25 | 9.51 | 541.2 | 45 | 24.32 | 54.33 | 51.33 | 40.04 | 37.04 |
| 7 | 31.25 | 10.67 | 540.44 | 45 | 23.64 | 52.88 | 49.88 | 38.1 | 35.1 |
| 8 | 50 | 13.66 | 539.09 | 45 | 22.21 | 49.82 | 46.82 | 34.02 | 31.02 |
| 9 | 62.5 | 15.38 | 538.55 | 45 | 21.54 | 48.36 | 45.36 | 32.08 | 29.08 |
| 10 | 100 | 19.8 | 537.6 | 45 | 20.11 | 45.3 | 42.3 | 28 | 25 |
| 11 | 125 | 22.36 | 537.22 | 45 | 19.43 | 43.85 | 40.85 | 26.06 | 23.06 |
| 12 | 200 | 28.98 | 536.55 | 45 | 18 | 40.78 | 37.78 | 21.98 | 18.98 |
| 13 | 250 | 32.85 | 536.28 | 45 | 17.32 | 39.33 | 36.33 | 20.04 | 17.04 |
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
| 17 | |||||||||
| 18 | |||||||||
| Remarks: ＊ are the reference values. | |||||||||
With its 0.550±0.005 conductor dimensions, this Cat6 FTP 23AWG Extend to 550MHZ Outdoor PE Jacket Network Cable is able to achieve speeds of up to 10Gbps, making it one of the fastest choices available. This remarkable speed capability ensures efficient data transfer even in complex outdoor network setups. It is also backward compatible with Cat5e FTP cable, allowing for versatile usage in various different scenarios.
The cable features a unique design with a PE jacket, which not only
provides excellent protection against outdoor elements such as
sunlight, rain, snow, and temperature fluctuations but also
safeguards the cable from abrasion and moisture. This durability
makes it ideal for long - term outdoor use.
The blue color of this cable makes it easily identifiable and
distinguishable from other cables, which is especially useful in
extensive outdoor installations where multiple cables might be
present. The FTP cable type incorporates effective shielding that
offers additional protection against interference. In outdoor
environments filled with potential electromagnetic interference
sources like power lines and wireless signals, this shielding
ensures that your data transmission is always stable and reliable.
This 305 - meter - long Cat6 FTP 23AWG Extend to 550MHZ Outdoor PE
Jacket Network Cable is highly suitable for larger installations.
It has a wide range of applications in different outdoor scenarios.
For outdoor event venues such as music festivals, sports stadiums,
or exhibition areas, it can be used to connect various network -
enabled devices like ticket - selling systems, security cameras,
and Wi - Fi access points, providing stable network connections for
event management and attendee services. In industrial outdoor
settings like factories, mines, or construction sites, it can
connect sensors, monitoring equipment, and control systems,
withstanding the harsh industrial environment. For outdoor campuses
or parks, it can be used to establish connections between different
buildings, information kiosks, and surveillance systems, enabling
seamless communication and data sharing.
Whether you are an individual setting up an outdoor home network to
connect smart outdoor devices like garden irrigation systems,
outdoor lighting, and security cameras or a professional in charge
of large - scale outdoor networking projects for commercial or
industrial complexes, the Cat6 FTP 23AWG Extend to 550MHZ Outdoor
PE Jacket Network Cable is an outstanding choice. With its high -
quality materials, fast speeds, and reliable performance, this
cable is bound to fulfill all of your outdoor networking
requirements.
Q:What is the brand name of this product?
A: The brand name of this product is ITI-LINK.
Q: What is the model number of this product?
A: The model number of this product is ITI-CT6F-002.
Q: Where is this product made?
A: This product is made in Shenzhen.
Q: Is this a CAT6 cable?
A: Yes, this is a CAT6 cable.
Q: What is the maximum bandwidth of this cable?
A: The maximum bandwidth of this cable is 250 MHz.
