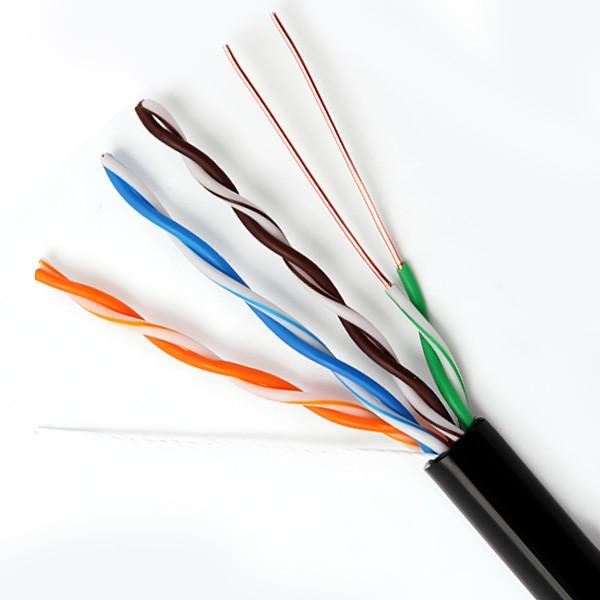

CAT5e UTP Outdoor Network Cable 24AWG 100MHz Solid PE Waterproof Cable 1000FT
Quick Detail:
· Bare solid copper conductor
· 100MHz
· Jacket PE, 60P, -20~75℃
· Rate temperature:60℃ ~75℃
· InstallationTemperature: -30℃-+50℃
· CompliestoANSI/TIA-568-B.2&IS0/EC11801
· CE, RoHS, TUV, UL compliant, CPR, ETL, RCM, ISO9001
Description:
1. This Category 5e outdoor single-layer waterproof network cable provides 100MHz bandwidth within a range of 90 meters, with a typical application speed of 100Mbps.
2. This Category 5e outdoor network cable uses high-quality oxygen free copper as the transmission conductor. The electrical transmission performance is reliable and excellent. Suitable for outdoor short distance terminal wiring operations.
3. Category 5e waterproof network cable is suitable for wiring in outdoor horizontal work areas, outdoor LAN wiring, and laying on overhead or walls.
4. Category 5e outdoor single-layer sheathed cables use PE waterproof outer sheath. The waterproof performance is extremely excellent and can be used in outdoor environments with short-term water and long-term exposure to sunlight and ultraviolet rays.
Specifications:
| Product Description: CAT5E UTP 24AWG Solid Outdoor PE Cable | ||||||
| Rev.: A | ECN Description: | |||||
| Construction Item Description | Electrical Property | |||||
Conductor | Material | Bare Solid Copper(elongation: 19 ~ 24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m | ||
| OD | 24 AWG | Resistance unbalance within a pair | ≤ 2% | |||
Insulation | Material | HDPE 8303 | Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m | ||
| OD | 0.86 ± 0.05 mm | Mutual capacitance | 5600 pF / 100m MAX | |||
| Average THK | 0.20 mm | Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |||
Color | 1p: white + 2 blue stripes & blue | Characteristic impedance at 100MHz | 100 ± 15 Ω | |||
2p: white + 2 orange stripes & orange | Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | ||||
| 3p: white + 2 green stripes & green | Mechanical Property | |||||
| 4p: white + 2 brown stripes & brown | insulation | elongation before aging | ≥ 300% | |||
Pair Twist | Lay & Direction | 1p: S=20.0 mm (28%) | tensile strength before aging | ≥16 MPa | ||
| 2p: S=17.5 mm (24%)) | elongation after aging | NA | ||||
| 3p: S=22.0 mm (32%) | tensile strength after aging | NA | ||||
| 4p: S=15.5 mm (21%) | Outer Jacket | elongation before aging | ≥350% | |||
| OD | / | tensile strength before aging | ≥9.7MPa | |||
Inner Assemble | Lay | S=90 ± 5 mm | elongation after aging | ≥263% | ||
| Direction | according to the drawing | tensile strength after aging | ≥7.3MPa | |||
| Filler | / | Packing | ||||
| OD | / | Inner Box | NA | |||
| Filler | Material | Ripcord | Master Carton | NA | ||
| Construction | 250D*3 | |||||
Outside Shield | Shield | / | ||||
| Construction | / | |||||
| Material | / | |||||
| Coverage | / | |||||
Jacket | Material | Inner Jacket: PVC + Outside Jacket: PE | ||||
| Hardness | 30 | |||||
| OD | 4.8 / 6.2 | |||||
| Average THK | / | |||||
Color | according to the customer's requirements | |||||
Marking Color | according to the customer's requirements | |||||
| Marking | according to the customer's requirements | |||||
| Construction Item Description | |||
Conductor | Construction | AWG | 24 |
| Material | / | Bare Solid Copper | |
Insulation | Material | / | HDPE 8303 |
| Outside Diameter | mm | 0.86 ± 0.05 | |
| Average Thickness | mm | 0.20 | |
Color | / | 1p: blue stripe + white + blue stripe & blue | |
| 2p: orange stripe + white + orange stripe & orange | |||
| 3p: green stripe + white + green stripe & green | |||
| 4p: brown stripe + white + brown stripe & brown | |||
Pair Twist | Lay & Direction | / | 1p: S=20.0 mm (28%) |
| 2p: S=17.5 mm (24%) | |||
| 3p: S=22.0 mm (32%) | |||
| 4p: S=15.5 mm (21%) | |||
| Inner Assemble | Lay & Direction | / | S=90 ± 5 mm |
Filler | Ripcord | / | 250D*3 |
| Cross Member | / | HDPE | |
Outside Shield | Shield | / | / |
| Construction | mm | / | |
| Material | / | / | |
| Coverage | % | / | |
Jacket | Material | / | Inner Jacket: PVC + Outside Jacket: PE |
| Hardness | A | 30 | |
| Outside Diameter | mm | 4.8 / 6.2 | |
| Average Thickness | mm | 0.45 ~ 0.55 | |
| Color | / | according to the customer’s requirements | |
| Marking Color | / | according to the customer’s requirements | |
| Marking | Jacket | / | according to the customer’s requirements |
| Electrical Properties | ||
| Conductor Resistance at 20°C | UL 444 & CSA C22.2 No. 214 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% | |
Dielectric Strength Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | |
| Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m | |
| Mutual capacitance | 5600pF / 100m MAX | |
| Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |
| Characteristic impedance at 100MHz | 100 ± 15 Ω | |
| Spark Test | 2000 ± 250VOC | |
| Transmission Properties | |||||||||
| CAT5e UTP PE OUTDOOR Cable | |||||||||
No. | Frequency | Attenuation (Max) | Propagation Delay (MAX) | Propagation Delay Skew (MAX) | Return Loss (Min) | NEXT (Min) | PS NEXT (Min) | EL-FEXT (Min) | PS EL-FEXT (Min) |
| MHz | dB/100m | ns/100m | ns/100m | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | |
| 1 | 4 | 4.05 | 552 | 45 | 23.01 | 56.27 | 53.27 | 51.96 | 48.96 |
| 2 | 8 | 5.77 | 546.73 | 45 | 24.52 | 51.75 | 48.75 | 45.94 | 42.94 |
| 3 | 10 | 6.47 | 545.38 | 45 | 25 | 50.3 | 47.3 | 44 | 41 |
| 4 | 16 | 8.25 | 543 | 45 | 25 | 47.24 | 44.24 | 39.92 | 36.92 |
| 5 | 20 | 9.27 | 542.05 | 45 | 25 | 45.78 | 42.78 | 37.98 | 34.98 |
| 6 | 25 | 10.42 | 541.2 | 45 | 24.32 | 44.33 | 41.33 | 36.04 | 33.04 |
| 7 | 31.25 | 11.72 | 540.44 | 45 | 23.64 | 42.88 | 39.88 | 34.1 | 31.1 |
| 8 | 50 | 15.07 | 539.09 | 45 | 22.21 | 39.82 | 36.82 | 30.02 | 27.02 |
| 9 | 62.5 | 16.99 | 538.55 | 45 | 21.54 | 38.36 | 35.36 | 28.08 | 25.08 |
| 10 | 100 | 21.98 | 537.6 | 45 | 20.11 | 35.3 | 32.3 | 24 | 21 |
| 11 | |||||||||
| 12 | |||||||||
| 13 | |||||||||
| 14 | |||||||||
| Remarks: ＊ are the reference values | |||||||||
Notices:
1. Open the packaging and carefully inspect the product, such as whether the printing is correct and whether the meter mark is clear.
2. During construction, please strictly follow the wiring standards and do not bundle or excessively bend the network cables.
3. When making RJ45 network cable connectors, please follow the T568B or T568A standards to ensure the correct wiring sequence, and ensure that the network cable has been fully pushed into the top of the crystal head, and each copper piece of the crystal head is pressed onto the core wire.
4. The wiring distance should not exceed the wiring standard of 100 meters as much as possible to ensure optimal transmission performance.
5. Outdoor network cable wiring should be installed within the range of -30 to 50 ℃ as much as possible to avoid affecting transmission performance.
Applications:
1. Cat5e outdoor PE network cable, as a high-performance data transmission medium, is widely used in various scenarios that require stable outdoor environments and high-speed network connections. Its enhanced design not only ensures durability and waterproofness in harsh weather conditions, but also provides longer transmission distances and higher data transmission rates than traditional Ethernet cables, up to 1000Mbps perfectly adapting to modern high-speed network requirements.
2. A typical application scenario is the intelligent community monitoring system. In such an environment, devices such as cameras, access control systems, and environmental monitoring sensors need to achieve real-time data transmission and remote monitoring through the network. Super Cat 5e outdoor PE network cables, with their excellent UV resistance, weather resistance, and waterproof and moisture-proof properties, can be reliably laid inside and outside residential areas. Whether connecting network equipment between buildings or arranging along walls and roads, they can ensure stable signals and are not affected by environmental interference. It not only supports smooth transmission of high-definition video streams, ensuring the clarity and real-time performance of monitoring images, but also effectively resists potential threats such as lightning and electromagnetic interference, enhancing the security and stability of the entire monitoring system.
3. In addition, in the construction of smart cities, such as intelligent traffic signal control systems, public WiFi hotspot coverage projects, urban lighting management systems, etc., Cat5e outdoor network cables also play an important role. It makes data exchange between urban infrastructure more efficient and reliable, providing a solid network foundation for the efficient operation of smart cities.
4. In short, the Category 5e outdoor Lan cable has become an ideal choice for many outdoor network deployment scenarios due to its excellent outdoor adaptability and high performance. Whether it is residential areas, commercial areas, or public facilities, its role in promoting information technology construction and improving the quality of life can be seen.
