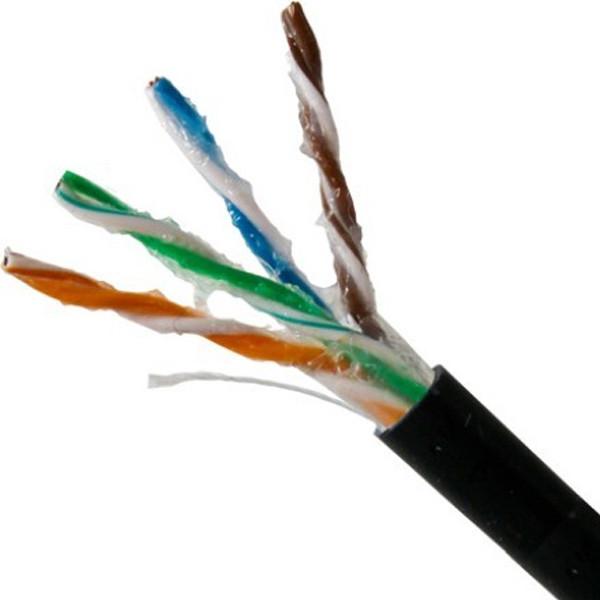

CAT5e UTP Outdoor PE Cable 24AWG Extend To 350MHz Filling Glue Cable 1000FT
Description:
> It provides 100MHz bandwidth within 90 meters, and the typical application rate is 100Mbps.
>The product selects high-quality oxygen-free copper as the transmission conductor. The electrical transmission performance is reliable and excellent.
>This cable is applicable to outdoor environments. The sheath made of polyethylene (PE) has excellent weather resistance, waterproofness and ultraviolet resistance, and can protect the internal conductors of the cable from being affected by harsh outdoor conditions.
>The presence of filling glue can further enhance the waterproof performance of the cable, preventing moisture from invading the interior of the cable and affecting signal transmission. At the same time, the filling glue can also improve the mechanical strength of the cable, making it more resistant to external forces such as extrusion and stretching in outdoor environments.
| Product Structure Description | |
| 1 | Composition : Solid Bare Copper (BC) |
| 2 | Composition : High density Polyethylene (HDPE) |
| 3 | Type of filler : Ripcord |
| Composition : Polyester | |
| 4 | Composition : LDPE |
| color : according to the the customer's requirements | |
| 5 | Composition :gel |
Specifications:
| Product Description: CAT5E UTP 4X2X24AWG Solid Outdoor PE Cable | ||||||
| Rev.: A | ECN Description: | |||||
| Construction Item Description | Electrical Property | |||||
Conductor | Material | Bare Solid Copper(elongation: 19 ~ 24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m | ||
| OD | 24 AWG | Resistance unbalance within a pair | ≤ 2% | |||
Insulation | Material | New HDPE | Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m | ||
| OD | 0.85 ± 0.05 mm | Mutual capacitance | 5600 pF / 100m MAX | |||
| Average THK | 0.19 mm ± 0.05 mm | Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |||
Color | 1p: white + 2 blue stripes & blue | Characteristic impedance at 100MHz | 100 ± 15 Ω | |||
2p: white + 2 orange stripes & orange | Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | ||||
| 3p: white + 2 green stripes & green | Mechanical Property | |||||
| 4p: white + 2 brown stripes & brown | insulation | elongation before aging | ≥ 300% | |||
Pair Twist | Lay & Direction | 1p: S=20.0 mm (28%) | tensile strength before aging | ≥12 MPa | ||
| 2p: S=17.5 mm (24%)) | elongation after aging | ≥ 150 % | ||||
| 3p: S=22.0 mm (32%) | tensile strength after aging | ≥10.5 MPa | ||||
| 4p: S=15.5 mm (21%) | jacket | elongation before aging | ≥350% | |||
| OD | / | tensile strength before aging | ≥9.7MPa | |||
Inner Assemble | Lay | S=90 ± 5 mm | elongation after aging | ≥263% | ||
| Direction | according to the drawing | tensile strength after aging | ≥7.3MPa | |||
| Filler | / | Packing | ||||
| OD | / | Inner Box | NA | |||
Filler | Material | Ripcord | Master Carton | NA | ||
| Construction | 300D | |||||
| Fill the glue | gel | |||||
Outside Shield | Shield | / | ||||
| Construction | / | |||||
| Material | / | |||||
| Coverage | / | |||||
Jacket | Material | LDPE | ||||
| Hardness | 81 ± 3 | |||||
| OD | 5.3±0.2 | |||||
| Average THK | 0.50 ~ 0.60 | |||||
Color | Black | |||||
Marking Color | White | |||||
| Marking | according to the customer's requirements | |||||
| Electrical Properties | ||
| Conductor Resistance at 20°C | UL 444 & CSA C22.2 No. 214 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% | |
Dielectric Strength Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | |
| Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m | |
| Mutual capacitance | 5600pF / 100m MAX | |
| Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |
| Characteristic impedance at 100MHz | 100 ± 15 Ω | |
| Spark Test | 2000 ± 250VOC | |
| Transmission Properties | |||||||||
| CAT5e Outdoor Cable | |||||||||
No. | Frequency | Attenuation (Max) | Propagation Delay (MAX) | Propagation Delay Skew (MAX) | Return Loss (Min) | NEXT (Min) | PS NEXT (Min) | EL-FEXT (Min) | PS EL-FEXT (Min) |
| MHz | dB/100m | ns/100m | ns/100m | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | dB(on 100m) | |
| 1 | 4 | 4.05 | 552 | 45 | 23.01 | 56.27 | 53.27 | 51.96 | 48.96 |
| 2 | 8 | 5.77 | 546.73 | 45 | 24.52 | 51.75 | 48.75 | 45.94 | 42.94 |
| 3 | 10 | 6.47 | 545.38 | 45 | 25 | 50.3 | 47.3 | 44 | 41 |
| 4 | 16 | 8.25 | 543 | 45 | 25 | 47.24 | 44.24 | 39.92 | 36.92 |
| 5 | 20 | 9.27 | 542.05 | 45 | 25 | 45.78 | 42.78 | 37.98 | 34.98 |
| 6 | 25 | 10.42 | 541.2 | 45 | 24.32 | 44.33 | 41.33 | 36.04 | 33.04 |
| 7 | 31.25 | 11.72 | 540.44 | 45 | 23.64 | 42.88 | 39.88 | 34.1 | 31.1 |
| 8 | 50 | 15.07 | 539.09 | 45 | 22.21 | 39.82 | 36.82 | 30.02 | 27.02 |
| 9 | 62.5 | 16.99 | 538.55 | 45 | 21.54 | 38.36 | 35.36 | 28.08 | 25.08 |
| 10 | 100 | 21.98 | 537.6 | 45 | 20.11 | 35.3 | 32.3 | 24 | 21 |
| 11 | |||||||||
| 12 | |||||||||
| 13 | |||||||||
| 14 | |||||||||
| Remarks: ＊ are the reference values | |||||||||
Notices:
1. Avoid excessive bending: When using Cate5e outdoor network cables, do not excessively bend them as it may cause the internal wiring of the cable to break or short circuit, thereby affecting the quality of the network connection. Therefore, when using Category 5e Ethernet cables, their natural state should be maintained to avoid excessive stretching and bending.
2. Maintain distance: Keep an appropriate distance to avoid affecting signal transmission quality due to being too close or too far away. Generally speaking, the maximum transmission distance of a network cable is within a hundred meters, and exceeding this range may cause signal attenuation.
3. Correct connection: When connecting the network cable, make sure to use the 568B or 568A wire sequence to turn the crystal head. The connector of the network cable should be inserted into the correct port and confirmed to be tightly connected to avoid looseness that may cause unstable network connection. At the same time, avoid using damaged connectors or ports.
4. Preventing electromagnetic interference: Electromagnetic interference may come from surrounding electrical equipment, power lines, etc. To reduce interference, Category 5e unshielded outdoor network cables should be kept away from the source of interference, or shielded network cables should be used to minimize the impact of electromagnetic interference.
Applications:
Due to its excellent waterproof performance, Cat5e Filling Glue outdoor network cables have been widely used in various outdoor scenarios. Here are several typical application scenarios:
1. Campus network:
> Campus networks typically cover a large geographic area,
including multiple buildings such as teaching buildings, dormitory
buildings, and libraries.
> The Cate5e outdoor network cable has a long transmission
distance and stable transmission performance, which can meet the
needs of campus networks for high-speed and stable network
connections.
> Its waterproof, sun resistant, and wear-resistant properties
also enable it to adapt to complex and changing outdoor
environmental conditions.
2. Factory network:
> The factory environment is usually harsh, with a large amount
of mechanical equipment, vibration, and dust present.
> The Category 5e outdoor network cable has the characteristics
of sturdy and durable outer skin and strong anti-interference
ability, which can maintain stable network connection in this
environment.
> It also supports high-speed data transmission, which can meet
the communication needs between various devices within the factory.
3. Remote monitoring:
> Remote monitoring systems require stable and reliable network
connections to transmit real-time data such as video and audio.
> Category 5e outdoor network cables have excellent transmission
performance and anti-interference ability, ensuring stable
transmission of remote monitoring data.
> Meanwhile, its waterproof and sunscreen properties also enable
it to meet the special requirements of outdoor monitoring equipment
for network cables.
4. Outdoor billboard and network equipment connection:
> Outdoor billboards and network devices (such as cameras,
sensors, etc.) are usually installed in outdoor environments and
require a network cable that can withstand harsh weather and
physical damage.
> The Category 5e outdoor network cable has the characteristics
of waterproofing, sun protection, wear resistance, and pressure
resistance, making it very suitable for this application scenario.
5. Smart city infrastructure:
> In the construction of smart cities, various sensors, cameras,
and communication devices require stable and reliable network
connections.
> Category 5e outdoor network cables have become an important
choice for network connectivity in smart city infrastructure due to
their high performance and adaptability.
