Bulk SFTP CAT6 LSZH Cable 23AWG 500ft for Industrial Automation Enterprise Networks

Bulk SFTP CAT6 LSZH Cable 23AWG 500ft for Industrial Automation Enterprise Networks

Product Description:

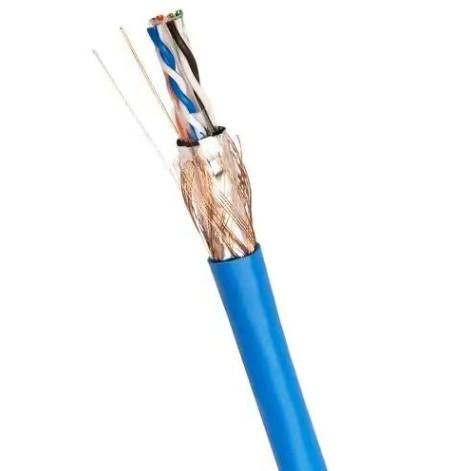

1. ITI-LINK ITI-CT6SF-012: Bulk SFTP CAT6 LSZH Cable for Industrial and Enterprise Networks
The ITI-LINK ITI-CT6SF-012 SFTP CAT6 cable is a premium networking solution designed specifically for large - scale industrial automation and enterprise network projects. Sold in convenient 500 - foot bulk boxes, this cable features a blue Low Smoke Zero Halogen (LSZH) jacket, 23AWG conductors, and advanced SFTP shielding, making it an ideal choice for wholesalers, system integrators, and large organizations.

2. Unmatched Performance and Reliability
Crafted with high - purity oxygen - free copper conductors, the ITI-CT6SF-012 ensures superior data transfer performance. The 23AWG conductor size strikes the perfect balance between robust signal strength and flexibility, enabling efficient data transmission at speeds of up to 10Gbps with minimal signal loss. This makes it well - suited for bandwidth - intensive applications in industrial settings, such as real - time monitoring systems, robotic control, and high - speed data analytics in enterprise data centers.

3. High - Speed Capabilities for Demanding Applications
With a maximum frequency of 250MHz, the ITI-CT6SF-012 can handle the most demanding data transfer tasks. Whether it’s streaming high - definition video in corporate offices, transferring large engineering files in industrial R & D centers, or supporting mission - critical applications in smart factories, this cable delivers stable and fast connectivity. Its ability to support 10Gbps data rates ensures seamless operation even in networks with heavy traffic loads.

4. Enhanced Protection with Blue LSZH Jacket
The cable’s blue LSZH jacket offers multiple benefits. In addition to providing excellent physical protection against abrasion and environmental factors, the LSZH material emits minimal smoke and zero toxic halogen gases in the event of a fire. This makes the ITI-CT6SF-012 compliant with strict safety regulations in industrial plants, hospitals, and public buildings. The jacket’s flexibility also simplifies installation, allowing the cable to be routed through tight spaces and complex cable trays with ease, whether in indoor industrial facilities or outdoor infrastructure projects.

5. Advanced SFTP Shielding for Interference Resistance
Equipped with SFTP (Shielded Foil Twisted Pair) shielding, the ITI-CT6SF-012 effectively combats electromagnetic interference (EMI) and radio frequency interference (RFI). In industrial environments filled with heavy machinery, power lines, and numerous wireless devices, or in enterprise data centers with high - density server deployments, this shielding technology ensures stable data transmission. It minimizes crosstalk between cable pairs, maintaining the integrity of the network signal and preventing data corruption.

6. Ideal for Bulk Deployments
The ITI-CT6SF-012 is packaged in 500 - foot lengths, making it highly convenient for large - scale installations. Wholesalers can benefit from volume pricing, while contractors and system integrators will find the length perfect for cabling large industrial sites, office buildings, or campus - wide networks. The blue color of the jacket also simplifies cable management, allowing for easy identification and organization in complex network setups.

7. Trusted Solution for Diverse Networks
Whether you are outfitting a new industrial automation line, upgrading an enterprise’s network infrastructure, or building a high - performance data center, the ITI-LINK ITI-CT6SF-012 SFTP CAT6 cable is a reliable and cost - effective choice. Backed by ITI-LINK’s commitment to quality and supported by a comprehensive warranty, this cable provides the speed, stability, and durability required for modern industrial and enterprise networking needs.

Technical Parameters:

Cable Type	CAT6 SFTP Cable
Maximum Frequency	250MHz
Shielding Type	SFTP
Maximum Data Rate	10 Gbps
Conductor Material	Copper
Jacket Material	LSZH
Conductor Size	23AWG

Product Description: Bulk SFTP CAT6 LSZH Cable 23AWG 500ft for Industrial Automation Enterprise Networks
Rev.: A		ECN Description:
Construction Item Description			Electrical Property
Conductor	Material	Bare Solid Copper(elongation: 19-24%)	Conductor Resistance at 20°C			≤ 9.5 Ω / 100m
	OD	23 AWG	Resistance unbalance within a pair			≤ 2%
Insulation	Material	HDPE	Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V			>1500 MΩ / 100m
	OD	1.14 ±0.05 mm	Mutual capacitance			5600 pF / 100m MAX
	Average THK	0.24 mm	Capacitance unbalance pair to ground at 800Hz or 1 kHz			≤ 160 pF / 100m
	Color	1p: white + 2 blue stripes & blue	Characteristic impedance at 100MHz			100 ± 15 Ω
		2p: white + 2 orange stripes & orange	Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min			No breakdown
		3p: white + 2 green stripes & green	Mechanical Property
		4p: white + 2 brown stripes & brown	insulation	elongation before aging		≥ 300%
Pair Twist	Lay & Direction	1p: S=19.0 mm (27%)		tensile strength before aging		≥12 MPa
		2p: S=23.5 mm (35%)		elongation after aging		≥ 150 %
		3p: S=21.5 mm (31%)		tensile strength after aging		≥10.5 MPa
		4p: S=27.0 mm (40%)	jacket	elongation before aging		≥ 150 %
	OD	/		tensile strength before aging		≥ 13.5 MPa
Inner Assemble	Lay	S=90 ± 5 mm		elongation after aging		≥ 125 %
	Direction	according to the drawing		tensile strength after aging		≥ 12.5 MPa
	Filler	cross member 5.0X5.0X0.5mmT	Packing
	OD	/	NA		NA
Filler	Ripcord	300D
	Drain Wire	Tinned Copper
Shield	Shield	Shield
	Construction	/
	Material	Polyester/Aluminium (PET/ALU)
	Coverage	≥ 115%
Jacket	Material	LSZH, 60P, -20~75℃
	Hardness	81± 3
	OD	7.2 ± 0.2
	Average THK	0.55 ~ 0.60
	Color	Blue
	Marking Color	according to the customer's requirements
Marking		according to the customer's requirements

Transmission Properties
CAT 6 ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013
No.	Frequency	Attenuation (Max)	Propagation Delay (MAX)	Propagation Delay Skew (MAX)	Return Loss (Min)	NEXT (Min)	PS NEXT (Min)	EL-FEXT (Min)	PS EL-FEXT (Min)
	MHz	dB/100m	ns/100m	ns/100m	dB(on 100m)	dB(on 100m)	dB(on 100m)	dB(on 100m)	dB(on 100m)
1	4	3.78	552	45	23.01	66.27	63.27	55.96	52.96
2	8	5.32	546.73	45	24.52	61.75	58.75	49.94	46.94
3	10	5.95	545.38	45	25	60.3	57.3	48	45
4	16	7.55	543	45	25	57.24	54.24	43.92	40.92
5	20	8.47	542.05	45	25	55.78	52.78	41.98	38.98
6	25	9.51	541.2	45	24.32	54.33	51.33	40.04	37.04
7	31.25	10.67	540.44	45	23.64	52.88	49.88	38.1	35.1
8	50	13.66	539.09	45	22.21	49.82	46.82	34.02	31.02
9	62.5	15.38	538.55	45	21.54	48.36	45.36	32.08	29.08
10	100	19.8	537.6	45	20.11	45.3	42.3	28	25
11	125	22.36	537.22	45	19.43	43.85	40.85	26.06	23.06
12	200	28.98	536.55	45	18	40.78	37.78	21.98	18.98
13	250	32.85	536.28	45	17.32	39.33	36.33	20.04	17.04
14
15
16
17
18
Remarks: ＊ are the reference values.

Electrical Properties
Conductor Resistance at 20°C	NF EN 50289-1-2 / IEC 60189-1	≤ 9.5 Ω / 100m
Resistance unbalance within a pair	NF EN 50289-1-2/ IEC 60708	≤ 2%
Dielectric Strength Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min	NF EN 50289-1-3 / IEC 61196-1-105	No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V	NF EN 50289-1-4 / IEC 60885-1	>1500 MΩ / 100m
Mutual capacitance	NF EN 50289-1-5 /IEC 60189-1	5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz	NF EN 50289-1-5 / IEC 60189-1	≤ 160 pF / 100m
Characteristic impedance at 100MHz	NF EN 50289-1-11/ IEC 61156-1	100 ± 15 Ω
Spark Test	UL444	2000 ± 250VOC

Applications:

1. ITI-LINK ITI-CT6F-012: Wholesale Bulk FTP CAT6 LSZH Cable for High-Speed Networking
ITI-LINK proudly introduces the ITI-CT6F-012, a premium FTP CAT6 LSZH cable engineered in SHENZHEN for large-scale networking projects. Available in 500ft bulk boxes with a blue Low Smoke Zero Halogen (LSZH) jacket, this cable combines 23AWG conductors and 550MHz bandwidth to deliver unmatched performance for wholesale buyers, system integrators, and enterprise clients.

2. High-Performance Design for Demanding Networks
Featuring 23AWG oxygen-free copper conductors and FTP (Foil Twisted Pair) shielding, the ITI-CT6F-012 ensures superior resistance to electromagnetic interference (EMI) and crosstalk. With a 550MHz frequency rating (double the CAT6 standard), it supports 10Gbps data transfer over extended distances, making it ideal for advanced applications like cloud computing, 4K/8K video streaming, and industrial IoT networks.

3. Blue LSZH Jacket: Safety, Durability, and Visibility
The blue LSZH outer jacket enhances cable management in complex setups while meeting strict fire safety standards. It emits minimal smoke and zero toxic halogens during combustion, making it compliant for use in hospitals, airports, and educational institutions. The jacket’s rugged construction resists moisture, abrasion, and UV exposure, ensuring reliability in both indoor data centers and outdoor infrastructure projects.

4. Bulk-Friendly Applications for Diverse Industries
Designed for wholesale efficiency, each 500ft box of the ITI-CT6F-012 is optimized for:

• Enterprise & Campus Networks: High-speed backbone cabling for offices, universities, and multi-building complexes.
• Industrial Automation: Reliable connectivity for PLCs, robotics, and real-time monitoring systems in factories.
• Data Centers: Low-latency links between servers, switches, and storage arrays in environments.
• Smart Cities: Backbone infrastructure for traffic control systems, public Wi-Fi, and smart utility grids.

5. Technical Specifications for Wholesale Clients

• Shielding: FTP (Foil Twisted Pair) for enhanced EMI/RFI protection.
• Bandwidth: 550MHz, future-proof for 10GBASE-T and emerging technologies.
• Conductor Size: 23AWG (0.55mm diameter) for balanced signal strength and flexibility.
• Certifications: UL, CE, CPR, RoHS, ensuring global compliance.
• Packaging: 500ft per box (152.4 meters), 40x40x22cm dimensions for easy shipping.

6. Why Choose ITI-LINK for Bulk Orders?

• Volume Pricing: Competitive rates for orders starting at 100 boxes, with discounts for large quantities.
• Rapid Turnaround: 15-day delivery timeline with a production capacity of 1,500 boxes per day.
• Custom Solutions: Optional color coding, branded labeling, and spool configurations for enterprise projects.


7. Versatile Performance for Modern Networks
Whether upgrading a retail chain’s POS systems, equipping a gaming arena with low-latency networks, or deploying a hospital’s telemedicine infrastructure, the ITI-CT6F-012 delivers consistent speed and reliability. Its blue LSZH jacket simplifies cable identification in patch panels and trays, reducing installation time for contractors and IT teams.

ITI-LINK’s ITI-CT6F-012 is more than a cable—it’s a scalable solution for wholesale clients seeking to meet the evolving demands of high-speed networking. Contact us today to discuss bulk pricing and customize your order for maximum efficiency.

FAQ:

Q: What is the brand of this SFTP CAT6 Cable?

A: The brand of this cable is ITI-LINK.

Q: What is the model number of this SFTP CAT6 Cable?

A: The model number of this cable is ITI-CT6SF-012.

Q: Where is this SFTP CAT6 Cable manufactured?

A: This cable is manufactured in SHENZHEN.

Q: What type of cable is ITI-CT6SF-012?

A: ITI-CT6SF-08 is an SFTP CAT6 Cable, which provides excellent shielding against electromagnetic interference.

Q: What is the length of the ITI-LINK SFTP CAT6 Cable?

A: The length of this cable is standard 500 feet .
